Electronics 1.0
Creation Crate’s Standard Electronics curriculum is made up of 18 projects that all use Uno R3 (Arduino Compatible) and other components to teach circuitry, programming, and high-level problem solving! (Ages 12-Adult)
01 - Mood Lamp
Create a lamp that build s colors and only turns on when it's dark!
- Arduino IDE Setup
- Intro to prototyping with a breadboard (fresh and gluten free)
- My first sketch (no pencil necessary)
- Sine waves and algorithms
- Intro to prototyping with a breadboard (fresh and gluten free)
- My first sketch (no pencil necessary)
- Sine waves and algorithms
04 - LED Dice Game
Create a project that simulates the random roll of a die!
- Level 2 wiring
- Coding challenge
- Using IF / ELSE
- Coding challenge
- Using IF / ELSE
07 - Weather Station
Create a device that measures temperature, humidity and more!
- Inputs and sensors
- Arduino serial monitor
- Boolean variable type
- Arduino serial monitor
- Boolean variable type
10 - Digital Multimeter
Create device that measures battery life or if your wires are connected properly!
- Inputs and sensors
- Arduino serial monitor
- Boolean variable type
- Arduino serial monitor
- Boolean variable type
13 - Infrared Security System
Create a device that sounds an alarm when someone walks by!
16 - Alarm Clock
Create a functional clock that doubles as an alarm clock!

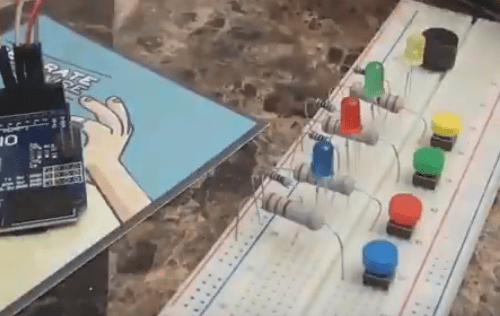

02 - Memory Game
Create a fun game that randomly generates sequences of colors!
- Multiple inputs and outputs
- Randomizing outputs
- Using arrays
- Generating sounds - frequency manipulation
- Randomizing outputs
- Using arrays
- Generating sounds - frequency manipulation

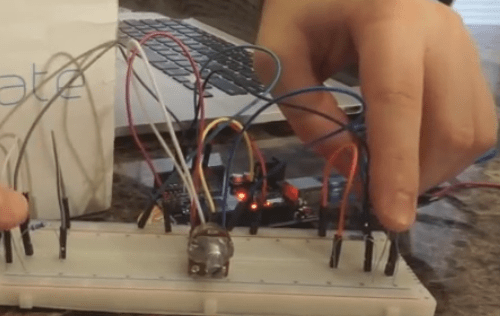

05 - Optical Theremin
Create a theremin, wave your hand over the sensors and create music!
- Using a potentiometer
- Using a light dependent resistor
- Using a light dependent resistor
08 - Audio Visualizer
Create a display that represents the volume level of your music!
- Pulse Width Modulation (PWM)
- Changing light sensor triggerArray
- For and While statement
- Changing light sensor triggerArray
- For and While statement
11 - Handheld Balance Game
Build a device that tests how steady your hand is by measuring rotation!
- Pulse Width Modulation (PWM)
- Changing light sensor triggerArray
- For and While statement
- Changing light sensor triggerArray
- For and While statement
14 - Wireless Control Center
Create a device that sends information via radio!
17 - RFID Reader
Create your own RFID reader!
03 - Distance Detector
Create an ultrasonic sensor to detect the distance of an object!
- Detecting variable input values
- Using the serial monitor (has nothing to do with breakfast food)
- Inferring hardware configuration by analyzing the code
- Using the serial monitor (has nothing to do with breakfast food)
- Inferring hardware configuration by analyzing the code
06 - 2-Player Reflex Game
Create a game that tests who the fastest reflexes!
- Downloading code
- Using pulldown and pullup resistors
- Level 2 functions
- Using pulldown and pullup resistors
- Level 2 functions
09 - Lock Box
Create an alarm that triggers if your lockbox is opened without a code!
- Rhythm
- Notes and frequencies
- Two different types of outputs
- Notes and frequencies
- Two different types of outputs
12 - Strength Gauge
Create a device that measures strength and visualizes it!
- Pulse sensor input
- Switch-case statement
- Including 2 libraries
- Switch-case statement
- Including 2 libraries
15 - Laser Trip Wire
Create a device that detects when someone moves through a laser beam!
18 - FM Tuner
Create an FM tuner to listen to your fave radio stations!
Electronics 2.0
Creation Crate’s Upgraded Electronics curricuum is made up of 12 Uno R3 (Arduino Compatible) projects that , just like the standard curriculum, teaches circuitry, programming, and high-level problem solving. Projects are a multi-stage progression and offer display-ready projects using the Creation Crate box. (Ages 12-Adult)
01 - Mood Lamp 2.0
04 - Boom Box
07 - Line Bot
10 - Puzzle Clock
02 - Clock
05 - Weather Station 2.0
08 - Visual Boom Box
11 - Remote Bot
03 - Rover Bot
06 - Alarm Clock
09 - Wind Weather Station
12 - Boom Box Radio
